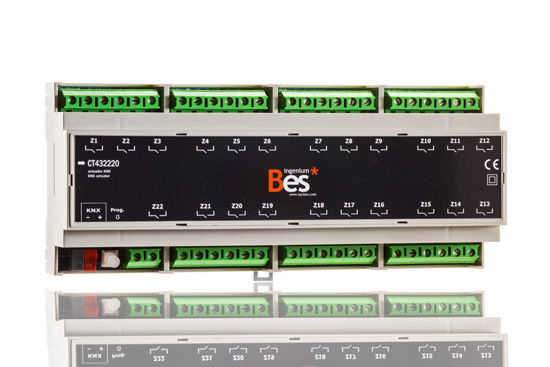

On/Off actuator with 22 outputs, free voltage relays with a cutting power of 16A@230V each one. Multifunction programming. Outputs work simultaneously or independently in different modes (binary outputs, blinds, fan-coil, etc). Arithmetic-Logic Unit (ALU).
PARAM: Programming by ETS parameter application.
Supply: 29V DC from KNX BUS
Consumption: 9mA from KNX BUS
Switching capacity: 16A @ 230V AC per output
DIN rail mounted (12 modules)
