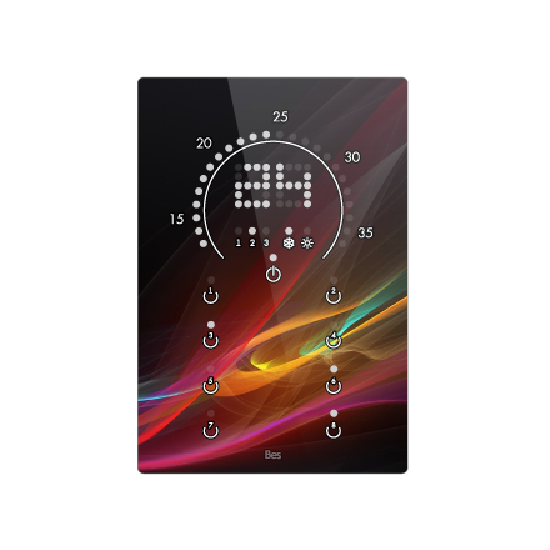

Cubik thermostat - TLR

Devices available with the back casing in WHITE or BLACK,
within a range of up to 3 levels of customization…

Thermostat with scroll for setpoint temperature selection and LED indicator, for the control of one independent climate area.

Eight completely programmable independent touch areas. Includes a discretized PI regulator to achieve greater comfort and energy savings.

Built-in humidity sensor. Dew point measurement according to relative humidity and temperature.

Arithmetic Logic Unit and timers/counters
Supply: 29V DC from KNX BUS
Size: 88 x 129 x 6mm
Mounted on universal box, screwed on wall
