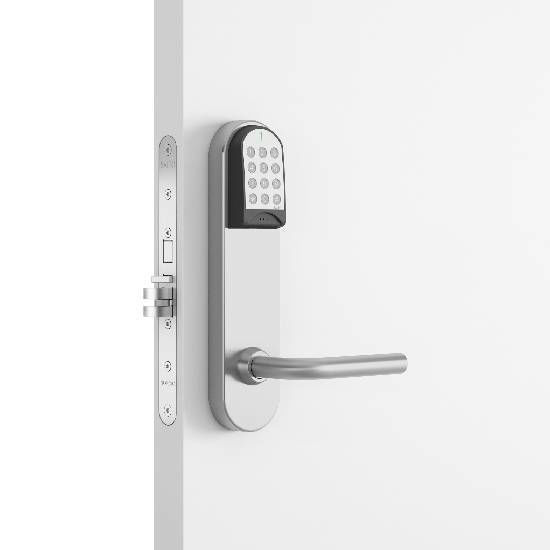

XS4 Original Keypad - Scandinavian

The SALTO XS4 Original Nordic electronic lock with keypad increases security and control, as it offers the choice of three forms of authentication to grant access.
Manufacturer: Salto
SKU: XS4-Original-Keypad-Scandinavian


  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Three forms of authentication configurations available to grant access:
    • Credential only.
    • Credential plus PIN.
    • Door code.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override Scandinavian oval cylinders).
  • Mechanical or electronic privacy option.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the SALTO LS5N15 series mortise lock).

Technical Characteristics

  • Covers door thicknesses: From 32mm up to 120mm.
  • Dimensions: 290mm x 67mm x 20mm.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Reversible handle left or right escutcheon.
  • Handle rotation: 52º.
  • Distance from the handle to the cylinder: 105mm.
  • Compatible with Scandinavian standard mortise locks.
  • Compatible with Scandinavian oval profile cylinders.
  • Square spindles available: 8mm and 8mm split.
