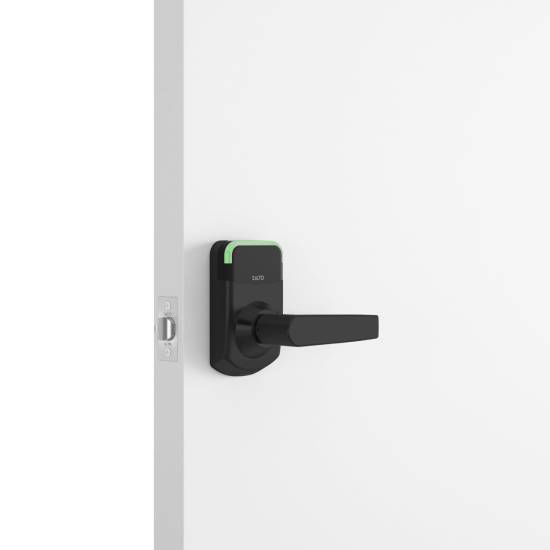

XS4 Mini - ANSI

The XS4 Mini ANSI for cylindrical or tubular latches has been designed to meet ANSI A156.2 Grade 1 or 2 cylindrical latch requirements. Easy, simple and quick way to replace existing traditional knob sets, and upgrade them with a state of the art electronic access control system with SALTO's cartridge cylindrical latch.
Manufacturer: Salto
SKU: XS4 Mini - ANSI


  • Simple installation, using just two screws when installing on new or existing ANSI cylindrical latch door standards.
  • Clear, dual colour optical signalling indicates access authorisation. Acoustic signal optional.
  • High security via high resistance, hardened anti-drill protection.
  • Concealed fixing screws for greater security and improved aesthetics.
  • For indoor applications: quick and easy install makes it ideal for retrofits.

Technical Characteristics

  • Covers door thicknesses: From 40mm up to 105mm (1-9 ⁄16" to 4-1 ⁄8").
  • Dimensions: 124,5mm x 68mm x 27mm (4-57⁄64" x 2-43⁄64" x 1-1 ⁄16").
  • Non-handed electronic lock.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Handle rotation: 54º.
  • To be used in combination with XS4 Mini ANSI's cylindrical latch only.
