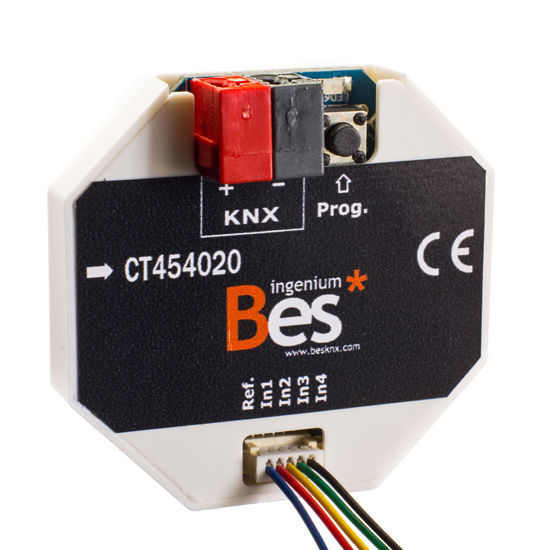

On/Off module - 4 inputs - Flush/Box mount

On/Off module - 4 inputs - Flush/Box mount
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: CT454020

4 extra-low voltage (SELV) digital inputs module for connecting conventional pushbuttons or switches. This device has programmable inputs for working simultaneously or independently in different modes (binary inputs, blinds, dimmers, etc). Arithmetic-Logic Unit (AUL).

PARAM: Programming by ETS parameter application.

Supply: 29V DC from KNX BUS
Consumption: 9mA from KNX BUS
Inputs: 4 extra-low voltage inputs (SELV)
Maximum cabled distance: 30 meters
Size: 45 x 45 x 10mm
Mounting: Built-in on universal distribution box


Programming manual
