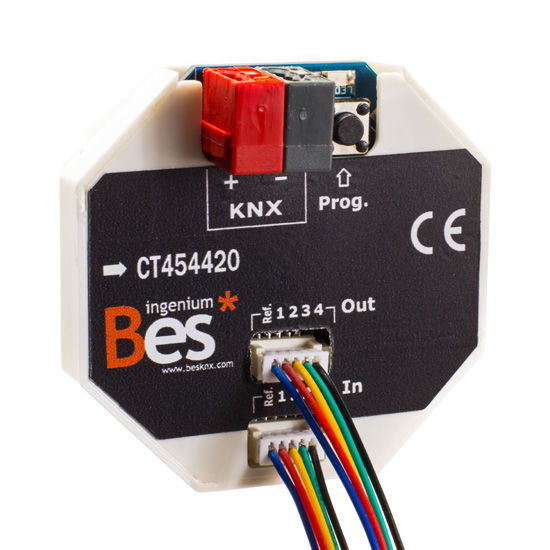

4 extra-low voltage (SELV) digital inputs module for connecting conventional pushbuttons or switches. This device has programmable inputs for working simultaneously or independently in different modes (binary inputs, blinds, dimmers, etc). 4 outputs for the control of signalling LEDs. Arithmetic-Logic Unit (AUL).
PARAM: Programming by ETS parameter application.
Supply: 29V DC from KNX BUS
Consumption: 9mA from KNX BUS
Inputs: 4 extra-low voltage inputs (SELV)
Outputs: 4 extra-low voltage outputs (SELV)
Maximum cabled distance: 30 meters
Size: 45 x 45 x 10mm
Mounting: Built-in on universal distribution box
