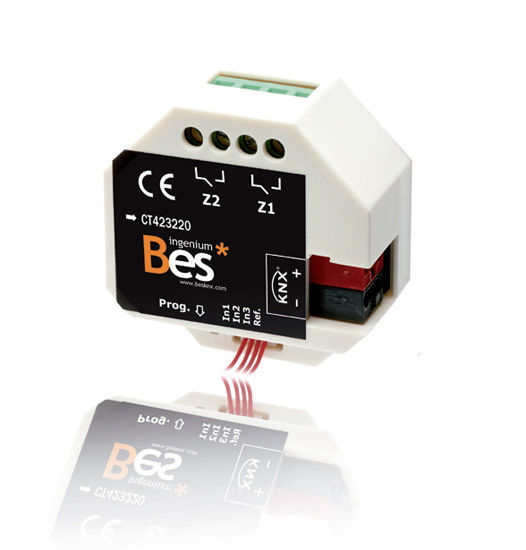

On/Off actuator - 3 inputs - 2 outputs 16A - Flush mount

On/Off actuator with 2 digital outputs, free voltage relays. Multifunction programming. Outputs work simultaneously or independently in different modes (binary outputs, blinds, etc). This device has 3 low-voltage digital inputs for connecting conventional pushbuttons or switches. Arithmetic-Logic Unit (ALU).

PARAM: Programming by ETS parameter application.

Supply: 29V DC from BUS KNX
Consumption: 9mA from KNX BUS
Switching capacity: 16A @ 230V AC per output
Size: 50 x 35 x 25mm
