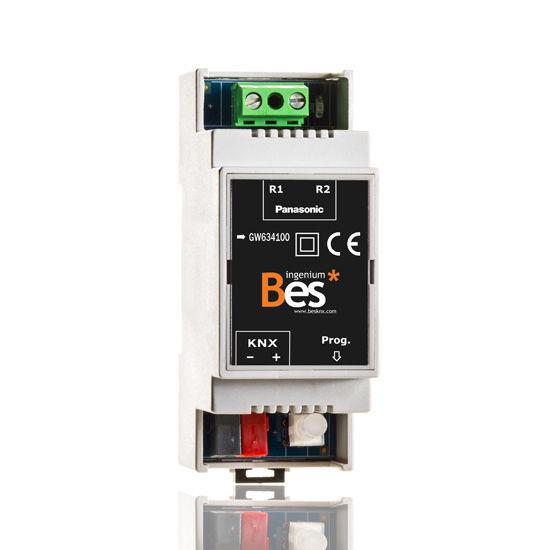

KNX – Panasonic HVAC gateway - DIN format

Gateway between KNX protocol and PANASONIC® air conditioning system, for ECOi and PACi series. It allows the integration of an indoor PANASONIC® climate unit with five operating modes (auto, heat, cold, ventilation and dehumidification) and three ventilation speeds (low, medium, high). It includes energy saving mode and arithmetic/logic unit and timers/counters.

Supply: 29V DC from KNX BUS
Consumption: 20mA from KNX BUS
DIN rail mounted (2 modules)
