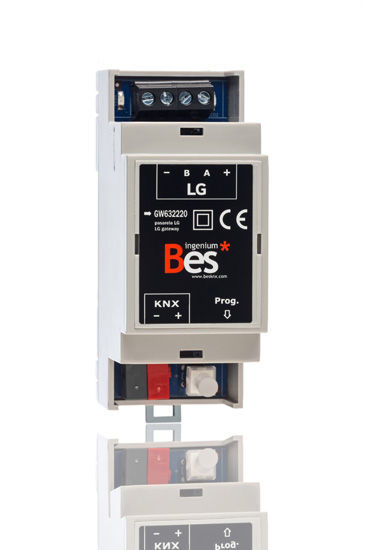

KNX – LG HVAC gateway - DIN format

Communication gateway between KNX protocol and LG HVAC protocol. Possibility to control up to 64 inside units. Direct connection to LG outdoor units RS485 bus.

It allows to control set-point temperature, current temperature, function modes (cold, heat, ventilation, drying or automatic) and fan speed (low, medium, high or auto).

Supply: 12/32V AC (main) and 29V DC from KNX BUS
Consumption: 5mA from KNX BUS
DIN rail mounted (2 modules)
