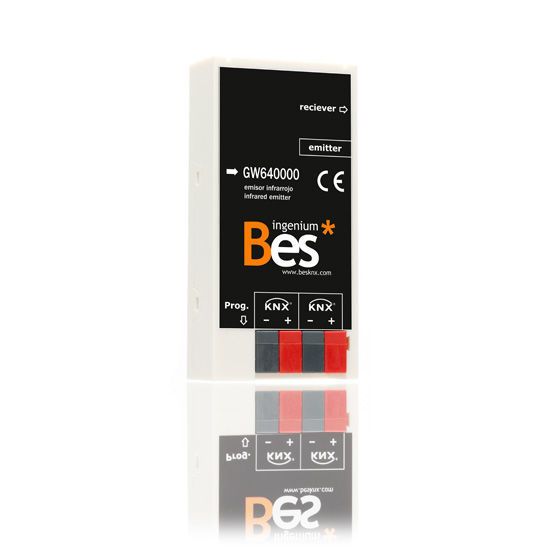

Infrared transmitter with learning capability

Infrared transmitter with learning capability
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: GW640000

Infrared emitter with learning capability which allows infrared control with receiver devices. It is able to storage of up to 255 codes. Maximum distance to receiver: 8m. Extension with LED emitters and mini jack connector. 8 programmable bit communication objects. Suitable for IR transmitters in the 40kHz band.

Supply: 29V DC from KNX BUS
Consumption: 15mA from KNX BUS
Size: 37 x 77 x 17mm


Programming manual
