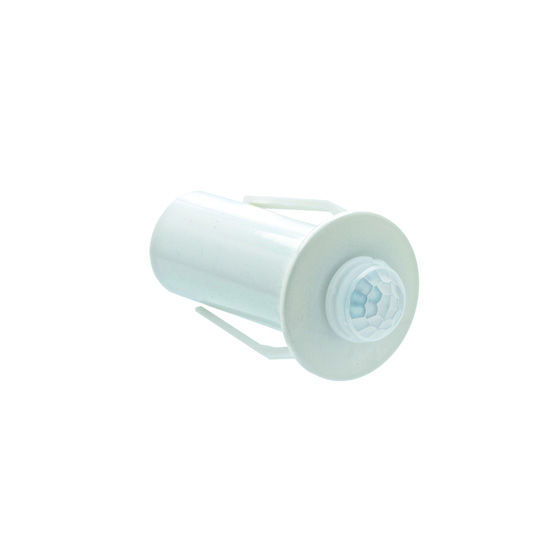

Infrared movement detector - Constant regulation - Embedded

Infrared movement detector - Constant regulation - Embedded
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: SR530000

Constant light regulation sensor which is able to control lighting in function of two motion channels or independent of them. In combination with a dimmer it can maintain a constant brightness in a room. It is possible to adjust the presence sensor sensitivity in an easy way.

It also includes an additional thermostat to measure temperature where it is installed.

Supply: 29V DC from BUS KNX
Consumption: 4mA from KNX BUS
Type of protection – IP20. Extra low security voltage SELV, 24V direct current
Size: Ø Embedded: 25mm / Ø Seen: 34mm / Length: 50mm
Mount: Mounted on the ceiling (embedded)
Detection range: Ø 5m at 2.5m height


Programming manual
