4.3” Vertical touch screen - Integrated Web server - Black

4.3” Vertical touch screen - Integrated Web server - Black
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: DS343200

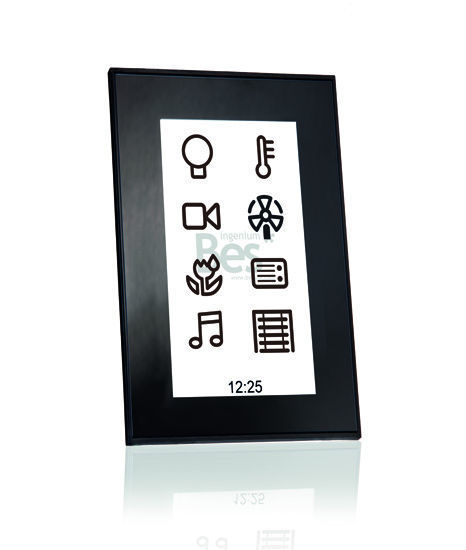

Vertical capacitive touch screen to control and monitor all installation devices by icons on customizable images. The background design, the controls, the icons and the text will be completely editable and can create up to 6 different themes which can be programmed to change automatically when you want. In this way the panel can be fully customized according to the place where it will be installed.

The panel has been designed to show all controls on a single page including 8 controls. However, if necessary it may include up to 32 controls, divided into 4 pages (8 controls per page) whose navigation is done by a simple lateral displacement. It also includes a specific interface for climate control.

The ability of the panel to generate a wifi network to allow it to be controlled locally from any iOS or Android device, simply by downloading the official Ingenium applications. It is also full compatible with Google Home for voice control of the smart home installation.

Other interesting features of the new vertical panel is gestural “shortcuts” that allow you to perform default actions with a simple movement while the screen remains in stand-by mode, multilanguage support and security issues such as blocking by numerical code or to restricting the access to the settings menu.

This PLUS version expands the capacity of local connectivity to remote/Internet. It also has a higher quality display with more contrast and viewing angle.

Supply: 18-30V DC from auxiliary power supply
Consumption:
130mA from auxiliary (It is not possible to use KNX power supply auxiliary output. With Ingenium power supplies, it is possible)
1mA from KNX BUS
Size: 88 x 129 x4mm (13mm depth)
Mounting: Surface
Flush mounting with box (included)
On universal distribution box, screwed on wall
Easily mounting on plasterboard wall

Datasheet

Programming manual

User manual

Programming application

Product tags
