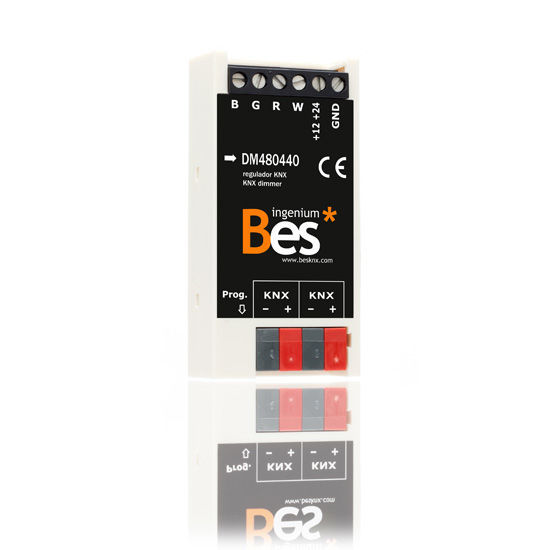

4-channel dimmer to regulate RGB+White LED modules

Proportional actuator to regulate RGB Led modules with additional white color, including the possibility to control each channel individually. Color scenes and sequences programming. Maximum operating output current: 3A per channel. PWM dimming method.

Input voltage: 10–24V DC from LED transformer supply
Output power:
4x30W (10V DC)
4x78W (24V DC)
Supply: 29V DC from KNX BUS
Consumption: 5mA from KNX BUS
Size: 37 x 77 x 17mm
Mounting: Luminaire or ceiling integration
